SPECIFICATION		JZW6280
SPECIFICATION		A	B	C	D
INJECTION UNIT
Screw Diameter	mm	85	90	90	100
Screw L/D Ratio	L/D	22.3	21	19.9	18.9
Shot Size(Theoretical)	cm³	2398	2576	2870	3181
Injection Weight(PS)	g	2091	2344	2611	2895
Injection Rate	g/s	400	448	499	553
Plasticizing Capacity	g/d	60	75	85	100
Injection Pressure	Mpa	206	184	164	149
Screw Speed	rpm	0~125
CLAMPING UNIT
Clamp Tonnage	KN	6280
Toggle Stroke	mm	870
Space Between Tie Bars	mm	850×850
Max. Mold Height	mm	900
Min. Mold Height	mm	350
Ejector Stroke	mm	260
Ejector Tonnage	KN	200
Ejector Number	Piece	17
OTHERS
Max. Pump Pressure	Mpa	16
Pump Motor Power	KW	55
Heater Power	KW	42
Machine Dimensions(L×W×H)	m	9.3×2.3×2.7
Machine Weight	t	31
Hopper Capacity	L	100
Oil Tank Capacity	L	1200
Platen Dimensions Face
Platen Dimensions Side
Machine Dimensions

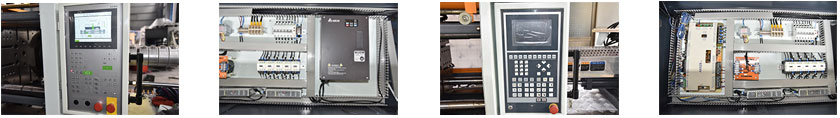

Control System

1.TFT LCD color display

2.Useing high-speed DSP processors, time-control precision up to 1ms

3. High-precision displacement sensor system, the control precision of ± 0.2mm

4. Using fuzzy forecasting techniques, temperature control accuracy of ± 1 ℃

5.Multi-channel input / output ports, port function can be configured

6.With output programmable function

7.Support USB and network interface (optional)

8. Parameter date protection locks, and auto-save feature with the power

9.Super-capacity data storage capabilities

Injection Device

Clamping Device

1. Double cylinder balanced injection system

2.Double cylinder beach move (above medium machine)

3.Multi-step injection pressure of injection / speed & positioning 　　 control

4.Multi-step pressure of injection/ speed & positioning control

5.High torque oil motor drive screw preplastication device

6.Screw flow-extend protection device

7.The temperature of barre is controlled by computer PID

8.Ceramic heating barrel device

9.Cooling temperature control system for barrel outet

10, Screw speed detection device (optional)

1.Oblique-row double toggle mechanical mold clamping mechanism

2. Siamesefront-link overall casting

3.Mechanical, hydraulic, electrical full interlock protection (above medium 　　 machine)

4.Low-pressure mold protection device

5.Multi-step clamping pressure / speed & position control

6.Multiple hydraulic ejector device

7.High speed mold clamping device

8. Mould cooling water shunt

9.Neutron device standard interface

10.Automatic centralized lubrication system

11.Opening/closing moulde,jection position controlled by scale

12.Automatic mould adjustment (optional)


Professional plasticizing and injection solutions	Balanced twin cylinder injection system	Double guide pin linear guide bearing

Hydraulic System
1.The manual plug valve hydraulic system make the machine having quick and smooth motion response 2.Double proportional valve control pressure flow 3.Hydraulic oil cooling device 4.High-performance imported hydraulic unit with optimizing allocation 5.The fuel has a big opening hole so can be cleaned easily

JZW series models have advantages of mature technology and reliable performance that is recognized by domestic and foreign customers consistent over the years. It has high accuracy,high efficiency and high service life.

1.Engry-savingPesponse to energy saving of high oil circuit 20% -80%

2.FastRate of fire increased by a short cycle time

3.PrecisionBuy semi-closed or fully closed loop, forming a more sophisticated control

4CleanActivities by the spray tank to ensure clean oil line

5.DurableHigh-rigidity clamping structure, die without distortion

6.StableOptimal design of machinery, asphalt, electrical control,close co-works withefficient cooler, forming more stable

7.ModularityAgencies, circuit, wiring modular, can be combined with multiple injection system,the demand of different production technology

Machin Type：JZW6280
Grade configuration	F6	Controller	TaiwanTechmation
Thermal OverloadRelay	Schneider Fuji	Linear teansducer	Import
LimitSwitches	Omron	Vane Pump	Sunny Vickers
Directional Valve	Vickers	Proportional Valve	Dofluid HNC
Five-star Hydraulic Motor	Intermot	Orbital Hydraulic Motor	Eaton JiNing
Lubrication Pump	Automatic	Airproofpiece	Imported
Contactor	Schneider Fuji	Air Breaker	Schneider Fuji
